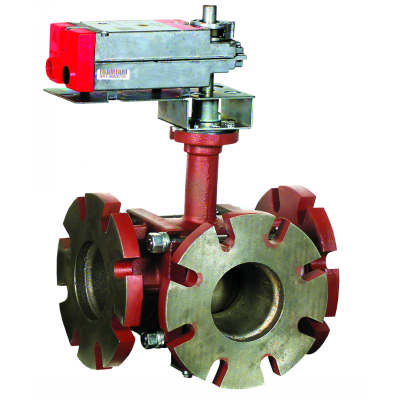

Honeywell VBF3JU1S0A Control Ball Valve with Flanged Connection 3-Way 4" 152Cv ANSI Construction Stainless Steel No Enclosure Non-Spring Return Actuator Floating

Honeywell VBF3JU1S0A Control Ball Valve with Flanged Connection 3-Way 4" 152Cv ANSI Construction Stainless Steel No Enclosure Non-Spring Return Actuator Floating
Images for general purposes only. Actual may be different than depicted.
Honeywell VBF3JU1S0A Control Ball Valve with Flanged Connection 3-Way 4" 152Cv ANSI Construction Stainless Steel No Enclosure Non-Spring Return Actuator Floating

Honeywell VBF3JU1S0A Control Ball Valve with Flanged Connection 3-Way 4" 152Cv ANSI Construction Stainless Steel No Enclosure Non-Spring Return Actuator Floating

SKU: VBF3JU1S0A
Usually Ships 1-2 Weeks
Rating:
$1,029.55 /ea
Qty of 2 - $1,005.25 /ea
Qty of 3 - $981.06 /ea

Shipping Note

Ships by Truck (LTL)

0
$0.00
0
$0.00
0
VBF3 Three-Way Ball Valve Assemblies, with and without actuators, control hot and chilled water with glycol solutions up to 50% in closed-loop heating, ventilating, and air conditioning (HVAC) systems to provide two-position or modulating functions.

Features

• Sizes from 4 to 6 inch with ANSI Class 125 flanged connections.
• Equal percentage or linear flow characteristics.
• Choice of four, factory-installed actuation control schemes: Floating, Modulating (2-10 V), Spring Return 24V 2-Position, Spring Return Modulating/Floating.
• Field configurable for normally open or normally closed fail-safe position.
• Removable manual operating handle to control valve during installation or in an event of power failure.
• ANSI Class IV A-port seat leakage (0.01% of Cv).
• Optional NEMA 3R (IP54) rated enclosure for outdoor applications.
• Option of four actuator mounting positions on the valve.
• Wide range of Cv choices from 91 to 650.
• Valve ball and stem 316 stainless steel.
• Non-isolating mixing or diverting control.
Power Supply 24V
Frequency 50/60 Hz
Max Static Pressure 240 PSI
Position Normally Closed
